Can you install a main breaker in a sub panel?

The subpanel may be equipped with a main breaker to allow for power interruption without having to go back to the main panel, but it is not required to have a main shutoff circuit breaker, since the feeder breaker back in the main panel serves this function.Jun 8, 2021

Does a 60 amp sub panel need a main breaker?

Your subpanel does not need a main breaker if it's in the same building. If it is in an outbuilding, you need a disconnect switch, and the breaker will suffice but its size doen't matter.Nov 17, 2019

Does a detached garage need a main breaker in a sub panel?

Does the sub panel require a main disconnect? Thanks for your help. NO it does not. A detached building fed from another building would require a disconnecting means nearest the entrance of the feeder conductors into the building.Jan 20, 2011

Can you run a 100 amp sub panel off a 100 amp main panel?

First the panels you are looking at that are rated 100A simply means you can use them for any application up to 100A. You can for example add a 60A breaker to your existing panel and protect the new subpanel with a 100A rating.

Can you run a 100 amp sub panel off a 200 amp main panel?

2 Answers. Can you add a 100 amp breaker to your main panel? Yes you have 12 slots the double pole breaker will only take 2 slots.

What is the 6 breaker rule?

The “six breaker throw rule” was a requirement in the National Electrical Code that a service must have have a main disconnect that shuts off all power and it cannot take more than six switch throws to do it, and the main disconnect(s) also must be clearly marked, as in the photo above.Feb 3, 2020

Does a subpanel need a ground rod?

Yes, any sub panel outside of the main building requires it's own ground rod and a ground wire back to the main building. And yes, a sub panel in the same building as the main does not need a ground rod - only the ground wire.Sep 27, 2017

What size breaker do I need for a sub panel?

Based on your question, since you will be having a subpanel, you want the breaker feeding the subpanel to be sized for the subpanel or slightly smaller. So if you purchase and install a 200A subpanel, then the breaker should be 200A. If you use a 125A subpanel, then use a 125A breaker.May 11, 2017

How far can subpanel be from main panel?

Looks like 1.5" EMT so that would mean that the distance between the raceways need to be a minimum of 9". This allows for the conductors to be installed without damaging them. Also that appears to be a compression EMT connector that connects the box to the sub-panel (same as the one on the main panel).Jul 27, 2020

Can I add a main breaker to a main lug panel?

Yes you can get a 60A main breaker for this panel

Your panel uses what is known as a QOM1 main breaker frame size -- this is standard for Square-D panels up to 125A.
Aug 19, 2018

image-Can you install a main breaker in a sub panel?
image-Can you install a main breaker in a sub panel?

Does a subpanel need a neutral?

3 Answers. The neutral and ground MUST NOT be bonded at a sub-panel. They should only be bonded at the main service panel. If you bond them anywhere other than the main service, the neutral return current now has multiple paths, including though your ground wire.


Does subpanel need main breaker?

  • A subpanel needs a main breaker when it is not in the same structure as the main panel and it has greater than 6 breaker handles. In my opinion your pool panel does not need a main breaker because it has fewer than 6 throws. Though it is not required, it is a good idea to have one when dealing with multiple circuits.

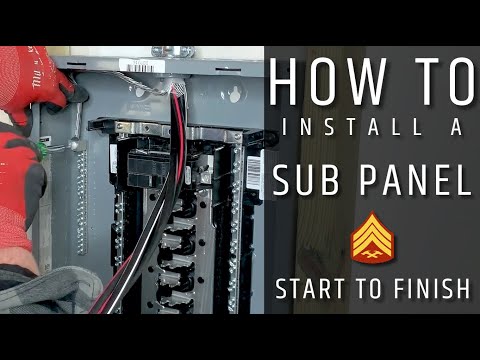

How to wire a sub panel?

  • Obtain the necessary permit for the work and make a list of the number of breakers that will be required of the subpanel.
  • Map the wiring route and drill any holes necessary for the wire to run and be supported. ...
  • Mount the subpanel to the wall so that it is flush between studs. An alternative is to surface-mount the subpanel on plywood if you don't have stud walls.
  • Run the wires into the subpanel through the knockout options that provide optimal placement of wires.
  • Run the wires into the service panel through the cable clamp attached to the knockout. ...


How to install a 100 amp subpanel?

  • Use 1 1/4-inch PVC conduit for a 100-amp sub panel or 1-inch PVC conduit if the sub panel is 50 amps or less. Run the conduit from the garage to the main panel box. If concrete has not been poured in the garage, run conduit down into the ground on the inside of the garage.


How do you install a circuit breaker panel?

  • Install a circuit breaker by turning off the power, running the wires to the breaker panel, attaching the wires to the new breaker, and testing the circuit.
