How do I know if my ground rod is working?

How many ohms should a ground rod have?

Grounding Electrode System

The National Electrical Code (NEC) section 250-56 establishes a requirement for a single ground rod or ground plate to have an earth resistance of 25 ohms or less.

How many ohms is a bad ground?

There is not one standard ground resistance threshold that is recognized by all agencies. However, the NFPA and IEEE have recommended a ground resistance value of 5.0 ohms or less. According to the NEC, make sure that system impedance to ground is less than 25 ohms specified in NEC 250.56.

Where is the resistance to ground of a single rod electrode exceeds 25 ohms?

If the resistance of a single ground rod exceeds 25 ohms to ground and the metal underground water line is the only other available electrode, an additional electrode must be installed. If this additional electrode is another ground rod, it must be driven at least 6' away.

How do I identify a ground wire?

To tell if your home has ground wire, check your outlets. If your outlets have three prongs, then your home has ground wire. If there are only two prongs, then ground wire may not be utilized.

How do you test a ground wire with a test light?

The test light is the go-between. If you connect one end to the positive power source and the other end to a good ground, it lights up. To test for positive voltage, attach one end to a known ground, and touch the other end to the wire you want to test. If it lights up, you're good.Jun 15, 2018

How can you tell if a ground wire is grounded?

Touch one probe of the multimeter to the ground wire and touch one probe to the ground wire electrical post. Because your multimeter is now functioning an an ammeter, it will register any current that is flowing between the post and the wire. A correctly grounded wire will show zero voltage.

How do I know if my house ground is bad?

A poor electrical ground can cause the lights in a home to dim. When this symptom is present, it is often made worse by turning on larger appliances, such as a stove or heater. This will usually cause the lights to dim even more or even turn off and the appliance likely will not have enough power to operate properly.

How long does a ground rod electrodes have to be?

Ground rods come in both 8-foot and 10-foot lengths, with 8-foot being the most common size used in residential installations. As a rule, ground rods must be a minimum of eight feet long and should not be cut down.Jun 7, 2021

How many ground rods are needed?

If a single ground has a resistance of 25 ohms or less, building codes allow it to be used as the only grounding device. If the resistance of a ground rod is greater than 25 ohms, at least one additional ground rod is required.Jan 18, 2021

image-How do I know if my ground rod is working?
image-How do I know if my ground rod is working?

What size of wire do you run to a ground rod?

  • The NEC code specifies that a solid copper wire used to connect to a ground rod must be at least either #6 or #8 gauge (depending on the size of your electrical service cable). #6 cable cable will always satisfy the sizing requirement, though in some cases larger is desirable.


How do you install ground rod?

  • If you hit a rock trench before you can hammer the rod down all eight feet, then you can simply install it horizontally. Shovel out a strip of the earth at least 2 1/2 feet deep and long enough to accommodate the entire grounding rod.


How many ohms in a ground rod?

  • The Electrical Code (USA) requires that a single ground rod have a maximum resistance to ground of 25 ohms (NEC 250.53(A.2)).

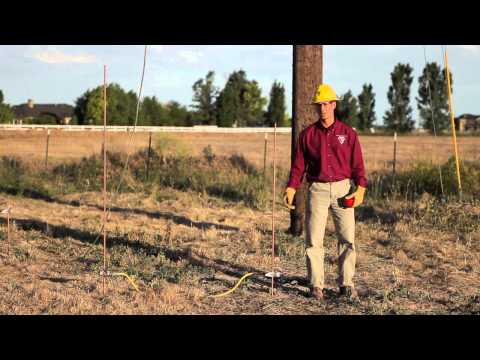

How do you measure ground resistance?

  • Before measurements of ground resistance are conducted with a ground rod, soil or ground resistivity testing is usually conducted with a series of four evenly-spaced stakes. A current is applied across the outermost pair of stakes and the voltage drop across the inner pair is measured with a ground resistance meter.
