Is IMC rigid conduit?

Rigid metal conduit (RMC) is the thickest-wall and heaviest-weight steel conduit. ... Intermediate metal conduit (IMC) has a thinner wall than RMC and weighs about one-third less. IMC has a thinner wall than RMC and weighs about one-third less than RMC.Aug 1, 2004

What is IMC conduit?

Intermediate Metal Conduit (IMC) provides a lighter weight, lower-cost solution for jobs that require the same strength as galvanized rigid steel conduit. ... IMC conduit is a raceway solution which allows for future wiring changes and provides excellent mechanical protection to conductors and cables.

What is the difference between IMC and EMT conduit?

Examples are electrical metallic tubing (EMT), which is lightweight and easy to install; intermediate metallic conduit (IMC), which has a thicker, galvanized wall, making it suitable for outdoor applications; and galvanized rigid conduit (GRC), which is thickest and offers the most protection.

Can you bury IMC conduit?

What about under slab? In the 2017 NEC, a new section was added which requires threaded rigid metal conduit (RMC) or intermediate metal conduit (IMC) for underground wiring. ... The exception allows PVC conduit, Type RTRC conduit, and Type HDPE conduit where buried under not less than 2 feet of cover.

Is IMC conduit explosion proof?

These devices are designed to stop or localize explosive gases from traveling through the conduit. ... Rigid steel conduit and couplings are listed to UL Safety Standard #6 and IMC is listed to UL Safety Standard #1242.Apr 16, 2018

Is IMC conduit aluminum?

Aluminum Rigid/IMC Conduit Couplings.

How many conductors can be in a 3/4 Flex?

A. Master electrician Rex Cauldwell responds: For practical purposes, the maximum number of 12-gauge THHN conductors for a 3/4-inch EMT conduit is nine.

Can rigid conduit be installed in concrete?

The NEC allows the use of rigid aluminum conduit in concrete or direct buried “where provided with approved supplementary corrosion protection.” This means that additional corrosion protection meeting the requirements of the AHJ is required (see “Supplementary Corrosion Protection” below).

What is rigid PVC conduit?

Schedule 40 & 80 rigid PVC conduit systems are sunlight resistant and are used exposed, encased in concrete, concealed in walls and in direct burial applications including systems for: Utilities. Cable, data and communication lines. Institutional, commercial, industrial buildings.

What is rigid aluminum conduit?

Allied Tube & Conduit aluminum rigid conduit combines light weight and corrosion resistance to provide a full-line of easy to install, low maintenance conduit whenever specifications call for aluminum. Allied Tube & Conduit rigid conduit aluminum fittings are manufactured of 6063 alloy in temper designation T-1.

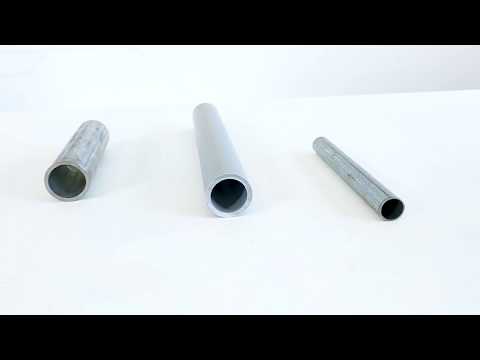

image-Is IMC rigid conduit?

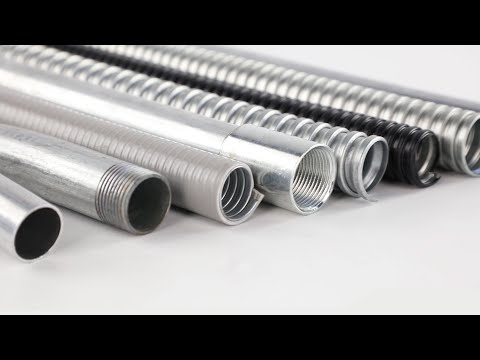

image-Is IMC rigid conduit?

Can IMC conduit be welded?

Allied Tube & Conduit®'s galvanized steel tubes can be safely and easily welded.


Is EMT rigid conduit?

Electrical Metallic Tubing—EMT

EMT is also called "thin-wall" conduit because it is thin and lightweight, especially compared to RMC. EMT is rigid but can be bent with a simple tool called a conduit bender.
May 19, 2020


What type of conduit should be used outdoors?

Out of the many conduit forms available, PVC conduit is considered best for outdoor applications. Among all conduit types, PVC is lightweight and versatile. Available in a variety of thicknesses or grades, PVC is well suited for direct burial or above ground work.


Why rigid steel conduit is used in buildings?

High Impact and Temperature Resistance

Steel is known for being one of the strongest materials, being resistant to different kinds of conditions like high impact and strong temperatures. Resistance to these elements ensures that the steel conduit would not get easily damaged, keeping the wires intact at all times.


What is the difference between EMT conduit and rigid conduit?

  • Rigid Conduit. While EMT conduits are less rigid than other types, it is important to understand the differences between them. Some EMT conduits are made from aluminum, which is rigid and more similar to GRC. Aluminum has a higher resistance to corrosion than other metals and materials.


What is intermediate metal conduit (IMC)?

  • Intermediate metal conduit (IMC) is a type of electrical conduit.It is also a rigid steel conduit designed for outdoor exposure and strong connections. It was designed specifically to protect insulated electrical conductors and cables. Essentially it is something for you to pass wires through.


What is rigid electrical conduit?

  • An electrical conduit is a tube used to protect and route electrical wiring in a building or structure. Electrical conduit may be made of metal, plastic, fiber, or fired clay. Most conduit is rigid, but flexible conduit is used for some purposes.
