What is AP trap and S-trap?

What is AP trap and S-trap?

The "trap" is the bend in the pipe where the waste goes out of the toilet. ... A P-trap (think P is for Plaster) exits at the back of the toilet and is designed to outlet through a wall. An S-trap (think S is for Sewerage) exits at the bottom of the toilet and is designed to outlet directly through the floor.

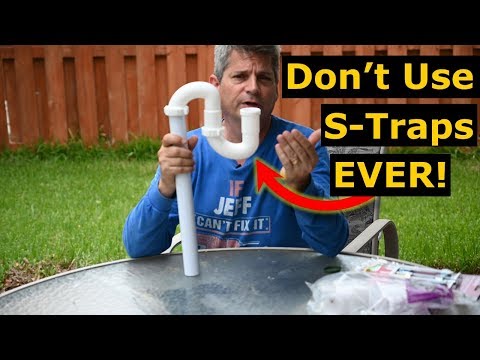

Why is an S-trap illegal?

The “S” trap is prohibited under the Uniform Plumbing Code throughout the United States. This is because the “S” trap will siphon or suck water out from the trap which will end up releasing methane (sewer) gases into the home.Aug 14, 2020

What's the difference between AP trap and as trap?

The only difference between a P-trap and an S-trap is the horizontal length of pipe on the outflow side which allows you to connect the vent. You can turn an S-trap into a P-trap by adding this pipe -- it should be at least 4 inches long -- and connecting a vent to it.

What is an S-trap used for?

The mechanical purpose of the trap is to hold water to prevent sewer gases containing viruses and bacteria from entering the home through the drain. With an “S” trap drain, the trap is easily siphoned dry with each use and the water seal no longer exists.Oct 15, 2011

Is there a trap in a toilet?

A toilet trap, or trapway, is a curving channel inside the base of a toilet that leads from the hole at the bottom of the bowl to the drainpipe. ... You can determine whether a clog is in the toilet's trap or further down in the drain by checking the sink and/or tub drains.Oct 14, 2021

Are running traps legal?

A trap which depends for its seal upon concealed interior partitions shall not be used. Full “S” traps, bell traps, drum traps, crown-vented traps, and running traps are prohibited. Fixtures shall not be double- trapped.

What is an inverted U trap?

The inverted trap prevents returning oil from the smaller diameter riser from falling back down the larger diameter riser during times of reduced capacity.Sep 28, 2012

Can washing machine drain into yard?

Rejigger your washing machine to irrigate your yard, rather than send that valuable freshwater to the sewer. ... As long as you're only putting biodegradable products down the drain, graywater is perfectly safe for irrigating plants.Mar 8, 2017

Do you need AP trap for a kitchen sink?

Beneath a kitchen or bathroom sink drain is a pipe with a sharp bend in it. ... You must have a p-trap installed under your sink if you want your home to pass inspection in many places, where the building code requires them.Jun 9, 2014

image-What is AP trap and S-trap?
image-What is AP trap and S-trap?

Which is better p-trap or bottle trap?

Bottle traps can be significantly deeper than P traps. P traps have a much better flow than bottle traps, so they are less likely to clog and collect debris. Most importantly, bottle traps can be forbidden in certain areas, so always be sure to check the regulations.


Do Toilets need P traps?

Modern designs of toilets have the trap built-in, which allows waste to be flushed away, and clean water then collects in the bowl preventing bad smells from entering the room. This means that unlike sinks, Shower, or bath wastes, toilets do not need to be fitted with a P-trap as they already have one built-in.


Do you have to put a trap on a shower drain?

Yes, shower and tub drains require a trap in the plumbing to prevent harmful sewer gases from coming into the home.


Why does my P-trap smell?

A P-trap is the curved portion of pipe under the sink. It's supposed to create a seal by holding water, which prevents sewer gases from getting into the bathroom. If the P-trap isn't working properly, sewer gasses can make their way into the bathroom and cause your sink to stink.


Why is it called a P-trap?

A P-trap gets its name because it combines two 90 degree joints with a horizontal overflow pipe and gives the entire unit the shape of the letter “P.” One of the 90 degree joints exits the drain of the sink and then is joined to another which contains a water seal system that allows for water to flow into the overflow ...
