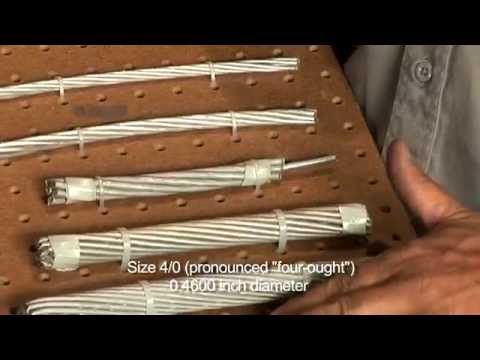

What is the difference between 4 and 4 0 wire?
American wire gauge (AWG) is a standardized wire gauge system for the diameters of round, solid, nonferrous, electrically conducting wire. ... The smallest AWG size is 40 and the largest is 0000 (4/0).
How many amps can 4 0 wire carry?
4/0 Welding Cable carries 310 Amps for 600 volt in-line applications.Apr 29, 2021
What is 0000 AWG wire?
AWG size does not include the size of the insulation protecting a wire. 0000 AWG is defined as 0.46 inches in diameter, and 36 AWG is defined as 0.005 inches in diameter.
What size wire do I need for a 200 amp service?
Installation of 200 amp electrical service needs a #2/0 AWG copper wire or #4/0 AWG for aluminum or copper-clad wire inside a 3″ conduit. Wiring a 200 amp electrical service is not a DIY job. It often requires a permit and professional installation by a qualified electrician following local electrical codes.Jun 20, 2021
What is 4 AWG wire used for?
This wire is 4 AWG, good for 95 Amp when used in conduit with less than 3 conductors. This wire is rated for use in dry or wet locations, raceways, or conduit. It can be used outside exposed to the weather as well, though the insulation is not 100% UV-proof and installation in conduit is recommended.
What wire do you use for 50 amps?
50 AMP Wire Size
For a maximum of 50 amps, you'll need a wire gauge of 6. Fifty amp breakers are most often used to power many different appliances. However, a kitchen oven can alone require 50 amps. Many electric dryers also require a 50 amp breaker.
What type of wire is Romex?
What is Romex Wire? Romex wire is made out of two or three THHN wires combined with a grounding bare copper wire. Like the THHN wires, Romex wire can't be used outside because of its minimal PVC jacket protection.
What size wire is needed for 60 amps?
For 60 ampere breakers, electricians and professionals suggest using a wire size gauge ranging from 6 AWG to 4 AWG. All household wires have a rating of at least 600V, so only amperage really matters when it comes to determining wire gauge.Sep 2, 2021
What is 4 AWG amp rating?
How many amps can a 4 gauge wire handle? It has a rated ampacity of 85 amps at 75°C. This means that, for average use, the 4 gauge wire can handle up to 85 amps safely.Nov 5, 2021
What is the diameter of 4 0 aluminum wire?
Size AWG: 4/0. Stranding: 18. Conductor Diameter Inches: 0.475. Insulation Thickness Inches: 0.055.
