What is the rough opening for a 9 ft garage door?
The rough opening's width should be three inches longer than the door, measured between the left and right edges. So, in a 12-foot wide garage door, the rough opening will be 15 inches wide.
What is the rough opening for a 9 ft garage door?
If you are installing a 9′ wide garage door, the opening will be 9'3″ wide. Once finished, the opening will be 9′ wide. The finished opening should be the same width and height as the garage door you have purchased.
What's the rough opening for a 9x7 garage door?
When measuring garage doors the width is always given first followed by the height. So 9×7 implies a door that is 9ft wide and 7ft tall. Some builders frame the garage door rough opening width down to 8'10” or 8'11” for a 9ft wide door so that the metal door end stiles rest up against the door jambs.
How much bigger should a garage door be than the opening?
A garage door should not be much wider than the opening. The garage door should be the same width as the opening or very slightly smaller, with the rough opening being a few inches wider to accommodate the door's frame. This ensures the best fit and seal.Feb 21, 2021
What is the rough opening of a 16 foot garage door?
When constructing a new garage the opening for a 16×7 garage door the opening should measure 16×7. provide enough load bearing strength to cover the 16 foot opening span. to be installed making the total width of the opening with the jambs installed 16 feet.Jun 30, 2017
Is a 7 foot garage door actually 7 feet?
You probably noticed that the height of a standard garage door is consistently 7 feet. That should easily fit most cars but not all. You should know the height of your car before getting a replacement garage door – especially with a new construction home.

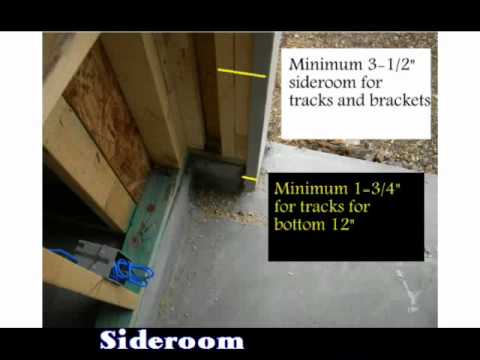

How much space do you need on either side of a garage door?
For the door to be properly secured and for the track to have enough space to be installed, there needs to be at least 3 ¾ inches of room on either side. For double door garages, the middle post between openings needs to be at least 10 inches wide.
What's the rough opening on a 36 inch door?
Standard Sizes
A 36” x 80” pre-hung single door will use a rough opening of approximately 38-1/2” x 82-1/4” to fit. Always remember to square up your door before you nail the frame in place to assure it will close properly.May 7, 2018
Can you put a bigger garage door?
Many experts say that widening a garage door opening is doable. The job requires framing skills and is not for the average DIYer, but you can widen a garage door by up to 6 inches on either sidewall fairly easily. ... Most builders frame a garage door opening to be only slightly smaller than the garage doors.Apr 29, 2021
What size opening do I need for a 12 foot garage door?
The rough opening's width should be three inches longer than the door, measured between the left and right edges. So, in a 12-foot wide garage door, the rough opening will be 15 inches wide.
Related questions
Related
What is the standard opening for a garage door?
It all depends on your home or community. For most homes, the standard single-car garage door is 8 to 9 feet wide and 7 to 8 feet high. New construction frequently offers 9 x 7 garage doors. Increasingly, garage door widths of 10 feet are being constructed.
Related
What is the standard rough opening for a garage door?
- The rough opening of a garage door is the actual size of the door itself. For example, if the garage door is 9’ x 7’ (always width first), then the rough opening is 9’ wide x 7’ high.
Related
How big is a garage door opening?
- An average single car garage will have the dimensions of 12 feet width X 22 feet length (264 square footage), but 14 feet wide is recommended for the ease of opening up your car doors.
Related

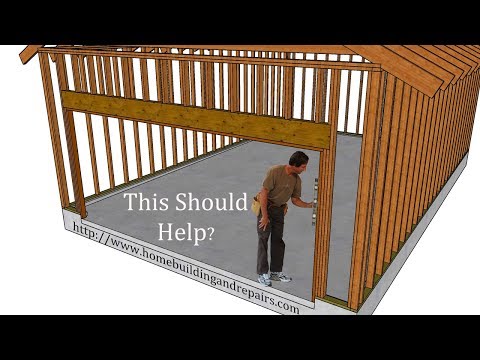

How to frame a garage door?
- Frame the rough opening for the garage door to 3 inches wider than the garage door you have selected.
- Measure the distance from the bottom plate of the wall to a point that is 1 1/2 inches higher that the garage door height. ...
- Cut the header from 2 x 12 lumber and to a length of the rough opening plus 6 inches. Install the header on top of the trimmers and nail.
- Nail or screw 2 x 6 jambs to the framing on the top first and then the sides of the rough opening. ...
