Where is the oil drain on a Craftsman lawn mower?
- Method 1: Tilt method. The Craftsman lawnmower is tilted to the side so that the air filter is facing upward. Place an oil container underneath thecap.
- Method 2: Using the oil drain plug. Some lawnmowers may be equipped with an oil drain plug situated underneath the mower where the blades are located.
- Method 3: Siphon method. A siphon pump is used to pump the used oil out from the engine into a separate compartment. ...
Where is the drain plug on a Craftsman riding mower?
The hood on the Craftsman riding mower is hinged at the front. Open the hood to locate the oil drain plug by lifting under the rear edge near the steering wheel and raising it straight up. Once you have located the drain plug, close the hood by rotating it downwards.Sep 21, 2017
How many quarts of oil does a Craftsman riding mower take?
The 19.5 hp lawn tractors take 48 U.S. fluid ounces, or 1.5 U.S. quarts, of detergent motor oil at each oil change. The oil must conform to API service classification SF, SG or SH. When operating at air temperatures above 32 degrees Fahrenheit, use SAE 30 motor oil.
Why is my lawnmower smoking white?
White smoke indicates that the engine is burning oil. This is usually due to a spill or accidental overfilling of the crankcase. As soon as the trace oil that has reached the engine is burned off, the smoke should clear up and your mower will operate fine.Jul 3, 2019
Do lawn mowers have oil drain plugs?
Changing The Oil on Your Small Engine. ... Then, locate the oil drain plug. On mowers, the plug is typically below the deck and may be obscured by a layer of grass and debris. On newer engines, they no longer have the drain plug underneath the engine.
Should I drain oil from lawn mower for winter?
If you want to keep your mower in great condition (and make sure it starts first time in the spring), you need to winterize it properly. This involves cleaning it, draining it of any oil and gas or removing the battery, and making sure all the parts are free from debris and ready for storage.Sep 28, 2021
Is SAE 30 the same as 10w30?
SAE 10w30 oil has 10w thickness at low temperatures, but SAE 30 is at high temperatures. ... In the straight SAE, 30 doesn't and can have immense Viscosity and helpless pumpability at low temperatures. As SAE 10w30 is not thick in low temperature, while SAE 30 is in high temperature.5 days ago
What happens if you put too much oil in your lawn mower?
Too much oil in your lawn mower may cause the engine to not run well and cause damaging results. Too much oil can cause your engine to overheat which can result in seal damage, blown gaskets or becoming hydrolocked.
How do you change the oil in a craftsman lawn mower?
- How to Change Oil in a Craftsman Lawnmower: Start your engine and keep it running for 15 minutes so that the oil gets warmed up and more comfortable to extract. With the spark plug wire removed, tilt the lawnmower to the side and drain all the oil into a container. If your machine has an oil drain plug, use it to empty the tank’s oil.
How do you drain oil from a lawn mower?

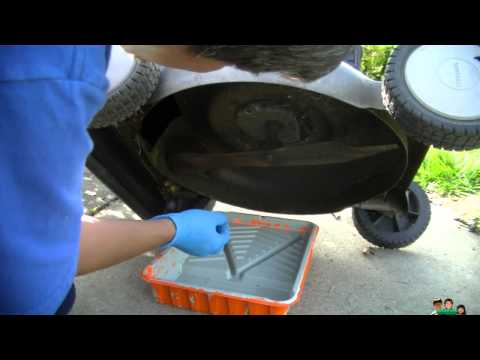

- Many small engines on push mowers do not have a drain plug and you must tip the mower over to drain a little oil out of the fill hole. Remember to keep the carburetor on the high side when tipping the mower so oil doesn’t run into the carburetor or air filter.
Related questions
Related
Where is the oil drain plug on a craftsman lawn mower?
- Some lawnmowers may be equipped with an oil drain plug situated underneath the mower where the blades are located. You can undergo the user’s manual of the Craftsman lawnmower, which shows the blueprints or the exact locations of various parts in the machine.
Related
What type of oil does a craftsman lawn mower use?
- Usually, most Craftsman lawnmowers use SAE30 type engine oils. Oils used in automobile engines can also be used. But make sure you also undergo what your user manual recommends regarding the oil grade and type.
Related
How do you put oil in a craftsman lawn mower?How do you put oil in a craftsman lawn mower?
Drain the oil by tilting the Craftsman mower over the drain pan. Replace the drain plug, and fill the engine with fresh motor oil via the filler cap. Check the oil level, and replace the filler cap. David Brown began his writing career while still in college, writing and editing research grants and scientific papers.
Related
How do you drain a craftsman lawn mower without a drain plug?How do you drain a craftsman lawn mower without a drain plug?
Tilt the mower spark plug side up, and move the drain pan under the mower deck. On Craftsman mowers without a drain plug, set the drain pan on the ground, near the mower's oil filler cap. Insert the 3/8-inch drive extension into the square socket on the drain plug, and, using the ratchet, remove the plug by turning it counterclockwise.
Related
How do you change the oil on a John Deere lawn mower?How do you change the oil on a John Deere lawn mower?
The oil change procedure varies, but the basics are the same. Clean the area around the drain plug (if equipped) and around the oil fill/dipstick hole. Run the engine for three or four minutes to warm the oil. Tilt the mower spark plug side up, and move the drain pan under the mower deck.
Related
How often do you change the oil in a craftsman lawn mower?How often do you change the oil in a craftsman lawn mower?
The oil in your Craftsman lawn mower should be changed after the first five hours of use and after every 50 hours of use, or at least once a year. Craftsman lawn mowers come equipped with a variety of engines made by Briggs & Stratton, Tecumseh and Honda.
